System R600/R1010

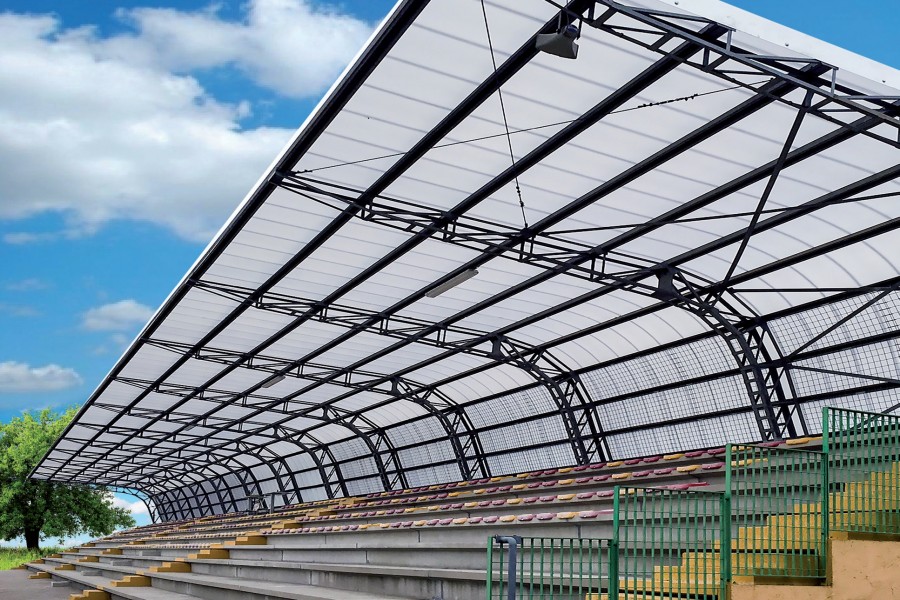

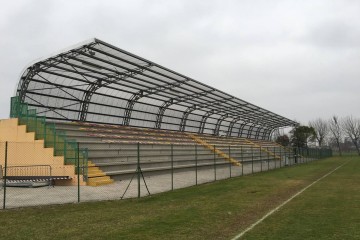

System R600/R1010 is suitable for a wide range of roofing applications where the maximum amount of natural light is required. Popular uses include coverings for canopy/walkway structures and multi use sports pitches etc.

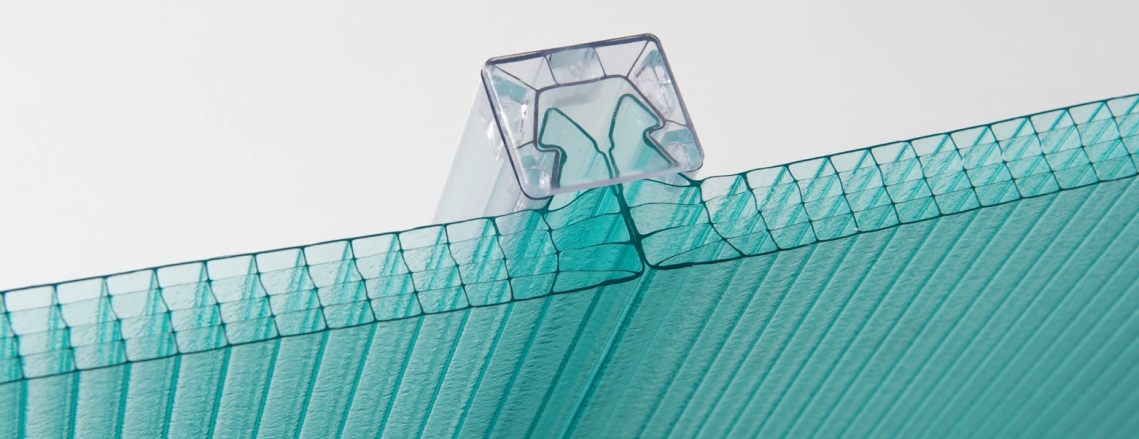

The R600/R1010 sheets are installed over purlins with the sheet joints then sealed with a translucent polycarbonate capping bar. This gives the system a modern standing seam appearance and provides the impression of a seamless expanse of glazing free from unsightly glazing bars.

With its double sided UV protection the R600/R1010 sheets can also be installed inverted and secured within steel glazing channels when a greater spanning capability is required.

• Modern standing polycarbonate seam system

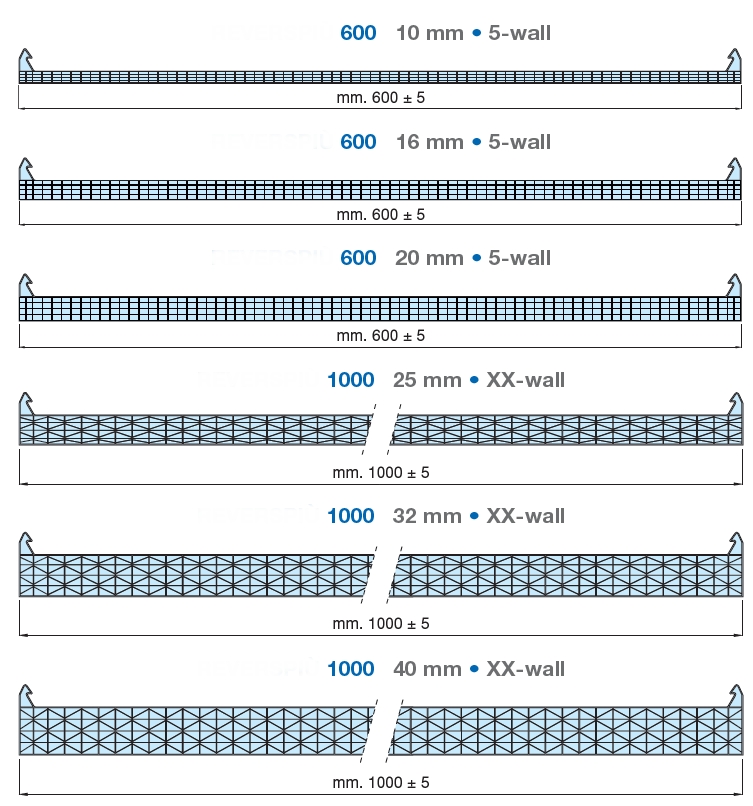

• Choice of sheet thicknesses in 600mm and 1010mm module widths
• No visible glazing bars from underneath
• Streamline aesthetics combined with secure fixing
• Satinised clear and opal sheets as standard with others tints available on request
• Manufactured to length - reducing waste
• Available in long lengths up to 10mtr+
• Prevents the transmission of 99% of UV rays
• Quick to install

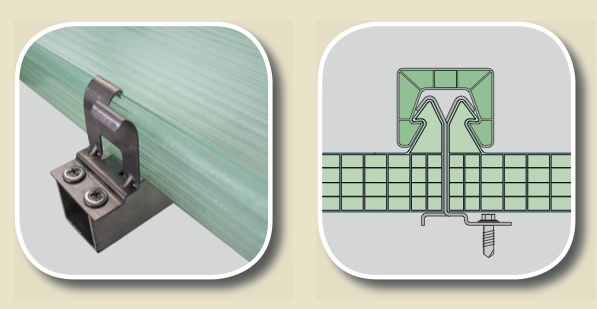

Simple and secure fixing
