System 655/16 Pitched

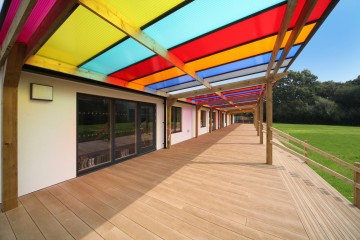

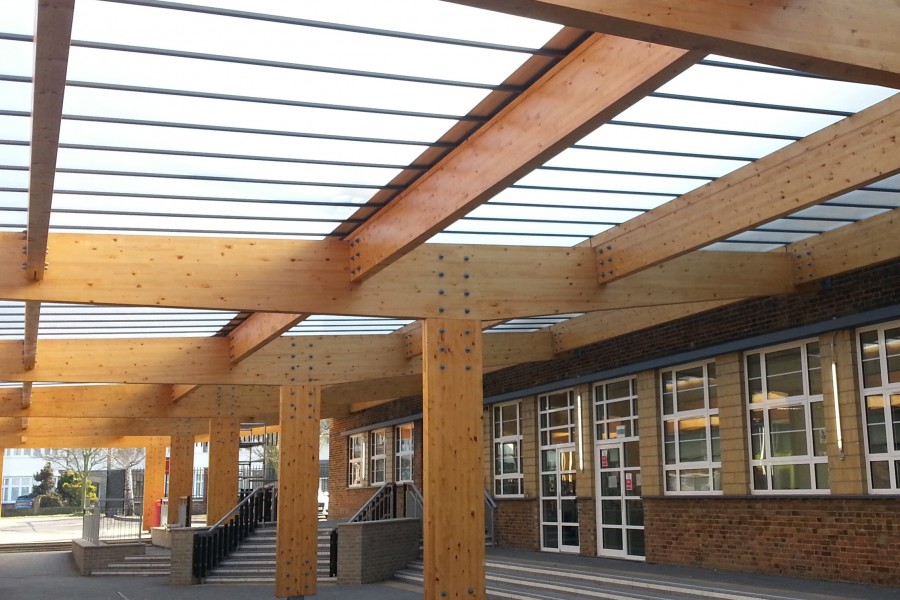

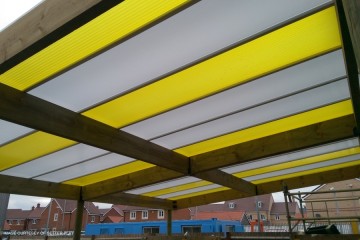

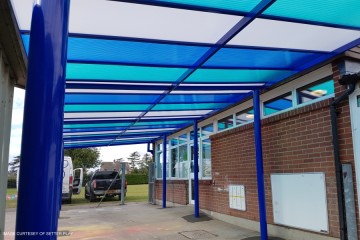

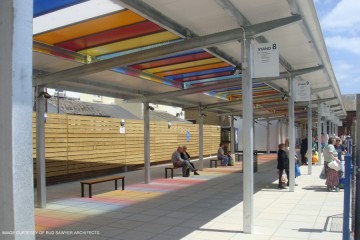

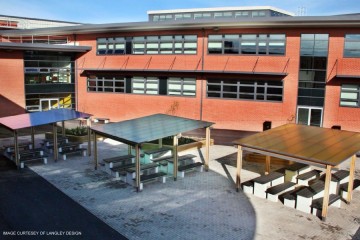

System 655/16 is suitable for a wide range of applications, especially canopy/walkway structures within schools/colleges, or commercial canopies where company branding can be reinforced with the choice of sheet/bar colour combinations.

• Streamline aesthetics combined with secure fixing
• Choice of 10 subtle or vibrant sheet finishes
• Fixing profiles powder coated to any RAL or BS colour
• A fully impact resistant - Class B ‘non-fragile’ system
• Available ex. stock or manufactured to order
• Prevents the transmission of 99% of UV rays
• Accommodates facets and long slope lengths
• All sheets supplied to length with thermo sealed sheet ends

The hidden ‘lock-in’ fixing method for the system provides an attractive glazing finish with no bar up-stands visible above the slope of the roof. System 655/16 is finished at the top, bottom and sides with durable anodised aluminium profiles making it extremely easy to flash against walls or cap on ridges and hips.

A full system datasheet, typical CAD drawings in PDF & DWG format and installation guide are all available within the downloads section.

System 655 uses strong yet slimline steel glazing channels in a choice of 1mm or 3mm wall thickness for optimum weight and span options. The polycarbonate sheets are self-extinguishing and have the European fire classification: Euroclass - 2006 B-S1, d0 [UK Class 0 equivalent].

Impact tests performed at the BRE rated the system as class B ‘non-fragile’ to ACR(M) 001:2005 [test film below].
