OndaPLUS+

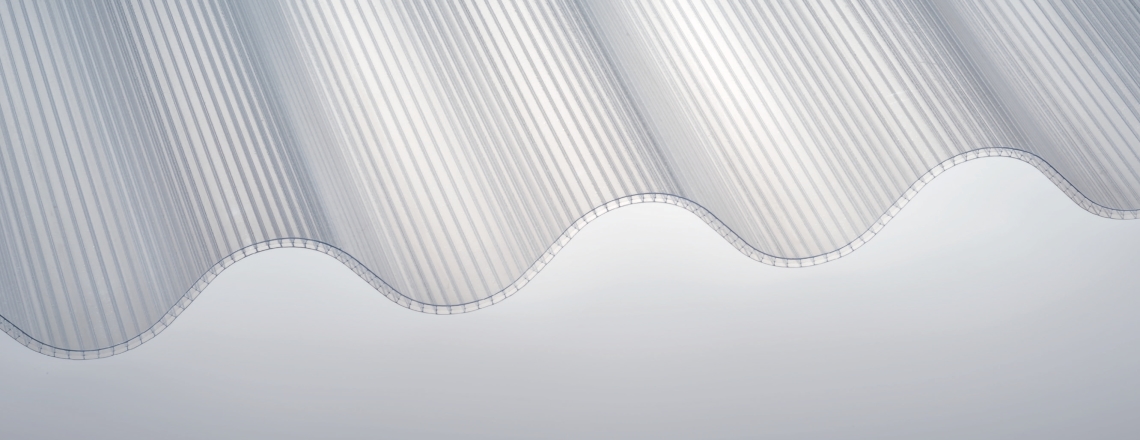

OndaPLUS+ is a corrugated triplewall polycarbonate sheet extruded in 4mm and 6mm sheet thicknesses to a standard European profile (Euro 177/51).

OndaPLUS+ sheets are equally at home when used for roofing, cladding or innovative interior partitioning because of their combination of strength and appealing aesthetics.

The OndaPLUS+ sheet is extruded to the exact length required with each sheet then benefitting from thermo sealed sheet ends.

OndaPLUS+ can also be supplied pre curved to a radius of 3500mm for barrel vault applications.

Free from microcracks and tensioning, OndaPLUS+ has excellent spanning and loading capabilities, high light transmittance and a superior protection against UV rays. It has good resistance to accidental impacts, extreme weather, temperature fluctuations and hail.

It is self-extinguishing as per EN 13501-1 B s1 d0 (equivalent to UK Class 0), has good thermal insulating properties and is quick and easy to install.

OndaPLUS+ is available in clear and opal sheet finishes as standard - a range of attractive translucent coloured finishes are also available subject to minimum order levels.

The system is completed with a wide range of finishing accessories.

OndaPLUS+ Flat and Curved R3500
in thickness 4 mm
U Value = 3,70 W/m2K
Light Transmission = 80% Clear, 68% Opal

OndaPLUS+ Flat and Curved R3500
in thickness 6 mm
U Value = 3,30 W/m2K
Light Transmission = 72% Clear, 50% Opal
